Variateur de fréquence 240Volt 1phase et 3phase TECO F510


  • $1,17500
  • Save $000

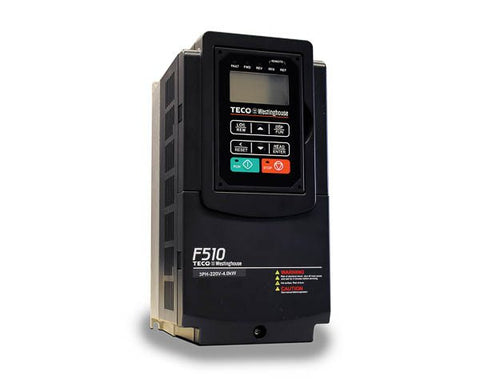

VFD Drive Teco Westinghouse F510

Used to change automatically the speed of the engine Voltage 240 volt JN5 Communication
High Performance AC Drive. Induction AND PM Motor Control
V/Hz, Sensorless Vector and Closed Loop Vector (option card required)
Constant torque and Variable Torque Ratings
PID Control with Sleep and Wake-Up
Compatible with JN5 Communication Software
VT = variable torque (When you need less power when you decrease the speed Ex: pressure washer, vacuum pump, ventilator etc...)
CT = constant torque (When you need the same power in import only speed Ex: Machine maple butter, screw, gearing, etc...)

#01156207 F510-2005-C3 = VT 14.5 AMPS 3HP/1PH ,
#01156208 F510-2008-C3 = VT 21 AMPS 3HP/1PH 7.5HP/3PH
                                               CT 17.5 AMPS 3HP/1PH 5HP/3PH
#01156209 F510-2010-C3 = VT 30 AMPS 5HP/1PH 10HP/3PH
                                               CT 25 AMPS 3HP/1PH 7.5HP/3PH
#01156210 F510-2015-C3 = VT 40 AMPS 7.5HP/1PH 15HP/3PH
                                                  CT 33 AMPS 5HP/1PH 10HP/3PH
#01156211 F510-2020-C3 = VT 56 AMPS 10HP/1PH 20HP/3PH
                                                  CT 47 AMPS 7.5HP/1PH 15HP/3PH
#01156212 F510-2025-C3 = VT 69 AMPS 12HP/1PH 25HP/3PH
                                                  CT 60 AMPS 10HP/1PH 20HP/3PH
#01156213 F510-2030-C3 = VT 79AMPS 15HP/1PH 30HP/3PH
                                                  CT  73AMPS 12HP/1PH 25HP/3PH

#01156214 F510-2040-C3 = VT 110AMPS 20HP/1PH 40HP/3PH
                                                  CT  85AMPS 15HP/1PH 30HP/3PH

#01156215 F510-2050-C3 = VT 138AMPS 25HP/1PH 50HP/3PH
                                                  CT  115AMPS 20HP/1PH 40HP/3PH

#01156216 F510-2060-C3 = VT 169AMPS 30HP/1PH 60HP/3PH
                                                  CT  145AMPS 25HP/1PH 50HP/3PH

#01156217 F510-2075-C3 = VT 200AMPS 35HP/1PH 75HP/3PH
                                                  CT 180AMPS 30HP/1PH 60HP/3PH

#01156218 F510-2100-C3 = VT 250AMPS 50HP/1PH 100HP/3PH
                                                  CT 215AMPS 35HP/1PH 75HP/3PH

#01156219 F510-2125-C3 = VT 312AMPS 60HP/1PH 125HP/3PH
                                                   CT  283AMPS 50HP/1PH 100HP/3PH
#01156220 F510-2150-C3 = VT 400AMPS 75HP/1PH 150HP/3PH
                                                   CT  60HP/1PH 125HP/3PH
