Tête seule pompe vacuum 202FTS 60CFM 1140RPM "FLOOD" CCW 2020-018 (Pièces) - Airablo

Vacuum pump head 60CFM 1140RPM "FLOOD" CCW (Parts)

  • $225
  • Save $000


Parts for model  202FTS 2020-018

1 CAP SCREW 1/4" * 1" # 1000001 # 1000-001
2 OIL SEAL FRONT & REAR # 3020010 # 3020-010
3 BEARING CAP # 3020023 # 3020-023
4 LOCKNUT # 3020022 # 3020-022
5 LOCKWASHER # 3020021 # 3020-021
6 BALL BEARING # 3020020 # 3020-020
7 SPACER RING # 3020018 # 3020-018
8 RETAINING RING # 3020019 # 3020-019
9 TAPER PIN # 1000003 # 1000-003
10 CAP SCREW 1/4" * 1/2" # 1000002 # 1000-002
11 ENDPLATE (FRONT) # 3020011 # 3020-011
12 VANE (202 H/HR) # 2020012 # 2020-012
13 ENDPLATE (REAR) # 3020006 # 3020-006
14 ROTOR (202H CCW) STANDARD # 2020010 # 2020-010
15 ROTOR (202HR CW) # 2020011 # 2020-011
17 HOUSING (202 SERIES) # 2020003 # 2020-003
18 ROLLER BEARING # 3020008 # 3020-008
19 BEARING RACE # 3030009 # 3030-009
20 RETAINING RING EXTERNAL # 3020012 # 3020-012
21 FAN SHROUD # 3020013 # 3020-013
22 FAN # 3020025 # 3020-025
23 FAN SHROUD COVER # 3020014 # 3020-014
24 CAP SCREW 5/16" * 3/4" # 1000290 # 1000-290
25 FLANGE 2" (INLET)(T) # 01280088
25 FLANGE 2" (OUTLET) # 01280124
26 FLANGE GASKET 2" # 1000035 # 1000-035
50 SET SCREW 1/4" * 1/2" # 1000228 # 1000-228
51 SET SCREW 1/4" * 1/4" # 1000229 # 1000-229

All parts are sold separatly and all prices are per unit

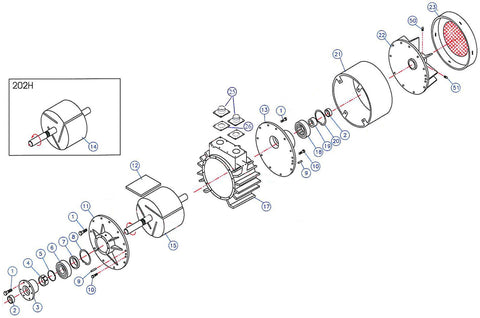

Exploded view (PDF) 202FTS 2020-018
