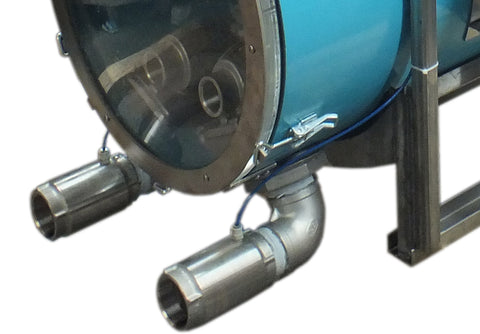

Double horizontal releaser pump in stainless steel tank and manifold 18"i.d.
Electric releaser with submersible pump allows to operate at high vacuum
All oversized components to operate at high vacuum
Covered with stainless steel ring and adjustable clip
Stainless steel check-valve
Manual-off-automatic switch
Adjustable electrode level control with contactor
Standard height of the main lines at 38"
No air enter in your network
Increases the number of CFMs during operation
18" diameter tank
Stainless steel pitless for cleaning the pump
Stainless steel frame
Manifold 18" with pvc sheet strainer and adjustable snap
Model and voltage to specify
2x is to indicate that the releaser have 2 pumps
1/2hp 115 volt 6 gpm 75 psi 10s05-9 1 1/4" FPT # 01250373D
1/2hp 230 volt 6 gpm 75 psi 10s05-9 1 1/4" FPT # 01250374D
2x 1/2hp 230 volt 12 gpm 75 psi 10s05-9 1 1/4" FPT # 01250448D
1hp 230 volt 6 gpm 150 psi 10s10-15 1 1/4" FPT # 01250465D
2x 1hp 230 volt 12 gpm 150 psi 10s10-15 1 1/4" FPT # 01250450D
1hp 230 volt 9 gpm 75 psi 16s10-10 1 1/4" FPT # 01250466D
2x 1hp 230 volt 18 gpm 75 psi 16s10-10 1 1/4" FPT # 01250469D
1hp 230 volt 11 gpm 50 psi 25s10-7 1 1/2" FPT # 01250372D
2x 1hp 230 volt 22 gpm 50 psi 25s10-7 1 1/2" FPT # 01250435D
2hp 230 volt 9 gpm 175 psi 16s20-18 1 1/4" FPT # 01250436D
2x 2hp 230 volt 18 gpm 175 psi 16s20-18 1 1/4" FPT # 01250470D
2hp 230 volt 12 gpm 100 psi 25s20-11 1 1/2" FPT # 01250467D
2x 2hp 230 volt 24 gpm 100 psi 25s20-11 1 1/2" FPT # 01250471D
2hp 230 volt 20 gpm 50 psi 40s20-7 2" FPT # 01250370D
2x 2hp 230 volt 40 gpm 50 psi 40s20-7 2" FPT # 01250369
3hp 230 volt 40 gpm 25 psi 62s30-5 2" FPT # 01250468D
2x 3hp 230 volt 80 gpm 25 psi 62s30-5 2" FPT # 01250413
Specification if 1/2hp 10s05-9 1 1/4" FPT
# 01250373D (115 volt) or # 01250374D (230 volt)
Multiply the flow rate by 2 for 01250448D with 2 pumps 10S05-9
Maximum pressure: 100psi
Flow at 25 hg 0psi : 12gpm (Max 4000 taps)
Flow at 25 hg 75psi: 8gpm (Max 2500 taps)
Flow at 28.5 hg 0psi: 7gpm (Max 2000 taps)
Flow at 28.5 hg 75psi: 6gpm (Max 2000 taps)
Specification if 1hp 10s10-15 1 1/4" FPT # 01250465D (230 volt)
Multiply the flow rate by 2 for 01250450D with 2 pumps 10S10-15
Maximum pressure: 175psi
Flow at 25 hg 0psi : 12gpm (Max 4000 taps)
Flow at 25 hg 150psi: 8gpm (Max 2500 taps)
Flow at 28.5 hg 0psi: 7gpm (Max 2000 taps)
Flow at 28.5 hg 150psi: 6gpm (Max 2000 taps)
Specification if 1hp 16s10-10 1 1/4" FPT # 01250466D (230 volt)
Multiply the flow rate by 2 for 01250469D with 2 pumps 16S10-10
Maximum pressure: 125psi
Flow at 25 hg 0psi : 18gpm (Max 6000 taps)
Flow at 25 hg 75psi: 16gpm (Max 5000 taps)
Flow at 28.5 hg 0psi: 9gpm (Max 3000 taps)
Flow at 28.5 hg 75psi: 9gpm (Max 3000 taps)
Specification if 1hp 25s10-7 1 1/2" FPT # 01250372D (230 volt)
Multiply the flow by 2 for 01250435D with 2 pumps 25S10-7
Maximum pressure: 85psi
Flow at 25 hg 0psi : 26gpm (Max 8000 taps)
Flow at 25 hg 50psi: 21gpm (Max 7000 taps)
Flow at 25 hg 75psi: 12gpm (Max 4000 taps)
Flow at 28.5 hg 0psi: 13gpm (Max 4000 taps)
Flow at 28.5 hg 50psi: 11gpm (Max 3500 taps)
Flow at 28.5 hg 75psi: 6gpm (Max 2000 taps)
Specification if 2hp 16s20-18 1 1/4" FPT # 01250436D (230 volt)
Multiply the flow by 2 for 01250470D with 2 pumps 16S20-18
Maximum pressure: 225psi
Flow at 25 hg 0psi : 20gpm (Max 6500 taps)
Flow at 25 hg 100psi: 18gpm (Max 6000 taps)
Flow at 25 hg 200psi: 10gpm (Max 3000 taps)
Flow at 28.5 hg 0psi: 9gpm (Max 3000 taps)
Flow at 28.5 hg 175psi: 9gpm (Max 3000 taps)
Specification if 2hp 25s20-11 1 1/2" FPT # 01250467D (230 volt)
Multiply the flow by 2 for 01250471D with 2 pumps 25S20-11
Maximum pressure: 135psi
Flow at 25 hg 0psi : 24gpm (Max 9000 taps)
Flow at 25 hg 100psi: 24gpm (Max 9000 taps)
Flow at 28.5 hg 0psi: 12gpm (Max 4000 taps)
Flow at 28.5 hg 100psi: 12gpm (Max 4000 taps)
Specification if 2hp 40s20-7 2" FPT # 01250370D (230 volt)
Multiply the flow by 2 for 01250369 with 2 pumps 40S20-7
Maximum pressure: 75psi
Flow at 25 hg 0psi : 45gpm (Max 15000 taps)
Flow at 25 hg 50psi: 30gpm (Max 10000 taps)
Flow at 28.5 hg 0psi: 21gpm (Max 7000 taps)
Flow at 28.5 hg 50psi: 20gpm (Max 6500 taps)
Specification if 3hp 62s30-5 2" FPT # 01250468D (230 volt)
Multiply the flow by 2 for 01250413 with 2 pumps 62S30-5
Maximum pressure: 80psi
Flow at 25 hg 0psi : 70gpm (Max 23000 taps)
Flow at 25 hg 50psi: 55gpm (Max 18000 taps)
Flow at 28.5 hg 0psi: 42gpm (Max 14 000 taps)
Flow at 28.5 hg 25psi: 40gpm (Max 13 000 taps)
Flow at 28.5 hg 50psi: 30gpm (Max 10 000 taps)
