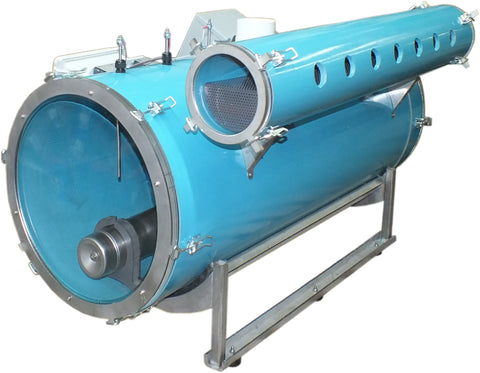

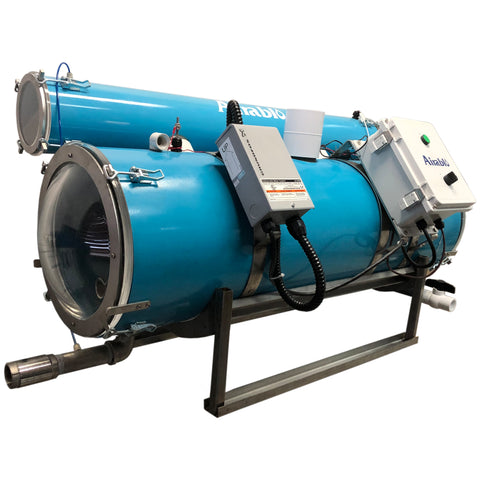

Horizontal releaser pump in stainless steel tank 14"i.d. and manifold 6"
All oversized components to operate at high vacuum
Cover with stainless steel ring with adjustable snap

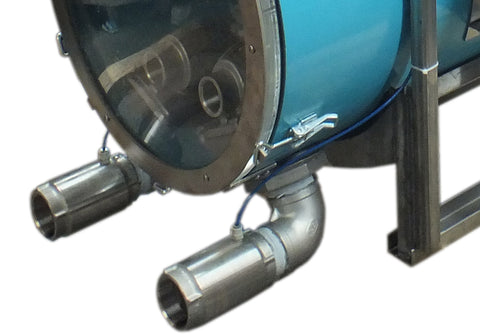

Stainless steel check valve
Manual-off-automatic switch
Adjustable electrode level control with contactor
Standard height of the main line at 21"
No air enter in your network
Increase the number of CFM in operation
Suction pump by the center
14 "diameter tank
Stainless pitless for easy cleaning of the pump
Stainless steel frame

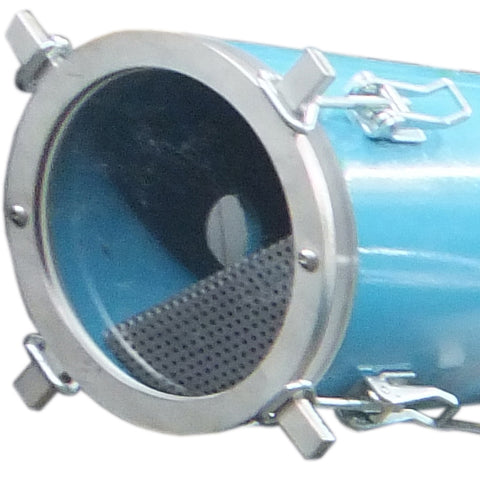

Manifold 6" with pvc strainer sheet for the arrival of main line
Model and voltage to specify
2x is to indicate that the releaser have 2 pumps
1/2hp 115 volt 6 gpm 75 psi 10s05-9 1 1/4" FPT # 01250404M
1/2hp 230 volt 6 gpm 75 psi 10s05-9 1 1/4" FPT # 01250474M
2x 1/2hp 230 volt 12 gpm 75 psi 10s05-9 1 1/4" FPT # 01250475M
1hp 230 volt 6 gpm 150 psi 10s10-15 1 1/4" FPT # 01250476M
2x 1hp 230 volt 12 gpm 150 psi 10s10-15 1 1/4" FPT # 01250477M
1hp 230 volt 9 gpm 75 psi 16s10-10 1 1/4" FPT # 01250478M
2x 1hp 230 volt 18 gpm 75 psi 16s10-10 1 1/4" FPT # 01250479M
1hp 230 volt 11 gpm 50 psi 25s10-7 1 1/2" FPT # 01250472M
2x 1hp 230 volt 22 gpm 50 psi 25s10-7 1 1/2" FPT # 01250480M
2hp 230 volt 9 gpm 175 psi 16s20-18 1 1/4" FPT # 01250481M
2x 2hp 230 volt 18 gpm 175 psi 16s20-18 1 1/4" FPT # 01250482M
2hp 230 volt 12 gpm 100 psi 25s20-11 1 1/2" FPT # 01250483M
2x 2hp 230 volt 24 gpm 100 psi 25s20-11 1 1/2" FPT # 01250484M
2hp 230 volt 20 gpm 50 psi 40s20-7 2" FPT # 01250485M
2x 2hp 230 volt 40 gpm 50 psi 40s20-7 2" FPT # 01250486M
3hp 230 volt 40 gpm 25 psi 62s30-5 2" FPT # 01250487M
2x 3hp 230 volt 80 gpm 25 psi 62s30-5 2" FPT # 01250488M
Specification if 1/2hp 10s05-9 1 1/4" FPT
# 01250404M (115 volt) or # 01250474M (230 volt)
Multiply the flow rate by 2 for 01250475M with 2 pumps 10S05-9
Maximum pressure: 100psi
Flow at 25 hg 0psi : 12gpm (Max 4000 taps)
Flow at 25 hg 75psi: 8gpm (Max 2500 taps)
Flow at 28.5 hg 0psi: 7gpm (Max 2000 taps)
Flow at 28.5 hg 75psi: 6gpm (Max 2000 taps)
Specification if 1hp 10s10-15 1 1/4" FPT # 01250476M (230 volt)
Multiply the flow rate by 2 for 01250477M with 2 pumps 10S10-15
Maximum pressure: 175psi
Flow at 25 hg 0psi : 12gpm (Max 4000 taps)
Flow at 25 hg 150psi: 8gpm (Max 2500 taps)
Flow at 28.5 hg 0psi: 7gpm (Max 2000 taps)
Flow at 28.5 hg 150psi: 6gpm (Max 2000 taps)
Specification if 1hp 16s10-10 1 1/4" FPT # 01250478M (230 volt)
Multiply the flow rate by 2 for 01250479M with 2 pumps 16S10-10
Maximum pressure: 125psi
Flow at 25 hg 0psi : 18gpm (Max 6000 taps)
Flow at 25 hg 75psi: 16gpm (Max 5000 taps)
Flow at 28.5 hg 0psi: 9gpm (Max 3000 taps)
Flow at 28.5 hg 75psi: 9gpm (Max 3000 taps)
Specification if 1hp 25s10-7 1 1/2" FPT # 01250472M (230 volt)
Multiply the flow rate by 2 for 01250480M with 2 pumps 25S10-7
Maximum pressure: 85psi
Flow at 25 hg 0psi : 26gpm (Max 8000 taps)
Flow at 25 hg 50psi: 21gpm (Max 7000 taps)
Flow at 25 hg 75psi: 12gpm (Max 4000 taps)
Flow at 28.5 hg 0psi: 13gpm (Max 4000 taps)
Flow at 28.5 hg 50psi: 11gpm (Max 3500 taps)
Flow at 28.5 hg 75psi: 6gpm (Max 2000 taps)
Specification if 2hp 16s20-18 1 1/4" FPT # 01250481M (230 volt)
Multiply the flow rate by 2 for 01250482M with 2 pumps 16S20-18
Maximum pressure: 225psi
Flow at 25 hg 0psi : 20gpm (Max 6500 taps)
Flow at 25 hg 100psi: 18gpm (Max 6000 taps)
Flow at 25 hg 200psi: 10gpm (Max 3000 taps)
Flow at 28.5 hg 0psi: 9gpm (Max 3000 taps)
Flow at 28.5 hg 175psi: 9gpm (Max 3000 taps)
Specification if 2hp 25s20-11 1 1/2" FPT # 01250483M (230 volt)
Multiply the flow rate by 2 for 01250484M with 2 pumps 25S20-11
Maximum pressure: 135psi
Flow at 25 hg 0psi : 24gpm (Max 9000 taps)
Flow at 25 hg 100psi: 24gpm (Max 9000 taps)
Flow at 28.5 hg 0psi: 12gpm (Max 4000 taps)
Flow at 28.5 hg 100psi: 12gpm (Max 4000 taps)
Specification if 2hp 40s20-7 2" FPT # 01250485M (230 volt)
Multiply the flow rate by 2 for 01250486M with 2 pumps 40S20-7
Maximum pressure: 75psi
Flow at 25 hg 0psi : 45gpm (Max 15000 taps)
Flow at 25 hg 50psi: 30gpm (Max 10000 taps)
Flow at 28.5 hg 0psi: 21gpm (Max 7000 taps)
Flow at 28.5 hg 50psi: 20gpm (Max 6500 taps)
Specification if 3hp 62s30-5 2" FPT # 01250487M (230 volt)
Multiply the flow rate by 2 for 01250488M with 2 pumps 62S30-5
Maximum pressure: 80psi
Flow at 25 hg 0psi : 70gpm (Max 23000 taps)
Flow at 25 hg 50psi: 55gpm (Max 18000 taps)
Flow at 28.5 hg 0psi: 42gpm (Max 14 000 taps)
Flow at 28.5 hg 25psi: 40gpm (Max 13 000 taps)
Flow at 28.5 hg 50psi: 30gpm (Max 10 000 taps)
Sketch to be complet when ordering (PDF)
