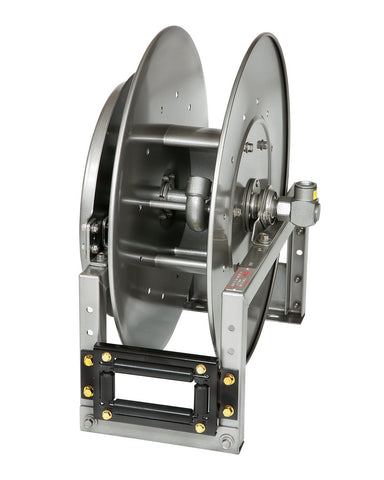

Spring rewind reel industrial 2000psi 1" * 100' 250F

To handle 3/4" or 1" I.D. hose

Fuel Dispensing / Waste Oil Evacuation / Air / Water

Roll-formed channel frame for heavy-duty applications.
Non-sparking ratchet assembly.
Declutching arbor to prevent damage from reverse winding.
Standard inlet: 90° balanced pressure swivel joint, 1" female NPT threads.
Standard outlet: 1" female NPT threads.
Standard pressures to 2,000 psi (138 bar), available up to 6,000 psi (414 bar) – must specify.
Temperatures from -40° F to +250° F (-40° C to +121° C).
Consult factory for other pressures and temperatures.
4-way roller assembly.
SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left. Optional configurations are available, must specify,
Constant tension is available consult factory.
