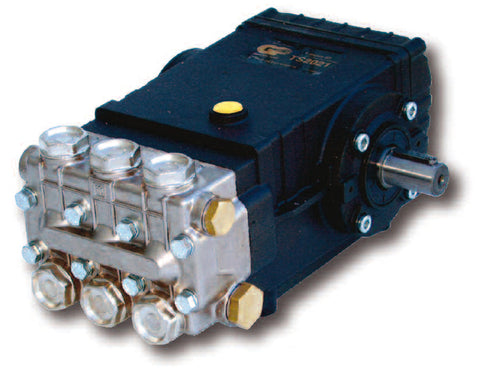

Triplex pump serie 47 **Nickel** 4.5/5.6gpm 2300/4000psi TS2021 TS2011 TS1621 T9211 T9281 TS2013
Maximum inlet pressure: 125psi
Maximum temperature: 165°F
Inlet thread: 1/2"-14 BSP-F
Outlet thread: 3/8"-19 BSP-F
Shaft dimension: 0.945 IN/ 24MM
Pump dimension 12.6" x 9.2" x 6.9"
Vacuum maximum à l'entrée: 9'(7.9"HG)
Features
- The preferred pump frame in the pressure cleaning industry
- Forged brass manifold with an exclusive lifetime warranty
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
Part list and specification sheet (PDF) TS2021
Part list and specification sheet (PDF) T9211
Part list and specification sheet (PDF) TS2011
Part list and specification sheet (PDF) TS1621
Part list and specification sheet (PDF) T9281
