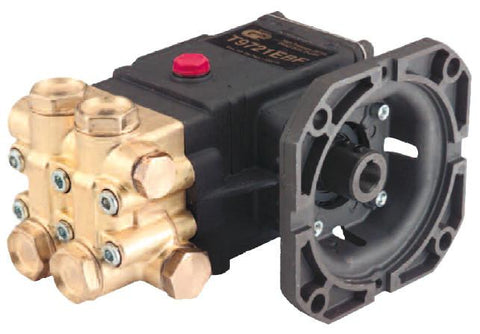

Duplex Plunger Pumps - Direct drive serie 49 1.7 / 2.85gpm 1500psi (Electric) T9711EBF T9721EBF T9731EBF
Pump Model T9711EBF T9721EBF T9731EBF
Maximum Discharge Pressure 1500 PSI
Maximum Pump Speed 1750 RPM
Maximum Inlet Pressure 125 PSI
Maximum Inlet Vacuum 9 ft. water (7.9 in. Hg)
Plunger Bore .787 in. / 20 mm
Crankcase Oil Capacity 10.1 oz.
Maximum Fluid Temperature 165°F
Inlet Port Thread 1/2-14 BSP-F
Discharge Port Thread 3/8-19 BSP-F
Shaft Diameter 5/8 in. I.D.
Weight 16 lbs. 8.8 x 6.8 x 5.4
Features
- Specifically designed for the demands of the water jetting industry
- Available in three flow rates to meet the industry’s demanding application requirements
- Forged brass manifold with a lifetime warranty against erosion and freezing
- Solid ceramic plungers
- Designed for continuous duty
- Superior seal life
- Nema 56C flange for direct mounting to standard electric motors
- Five-year warranty against defects in material and workmanship, from date of shipment (see price book for complete details)
