Vacuum pump head VP78 (Parts)

$3²⁵
Save $0⁰⁰

Quantity

Parts for model VP78 pump # 96106091

1 SCREW FOR PUMP HEAD VP77 # 22104025
2 WASHER FOR PUMP HEAD VP77 # 41456
3 NOT AVAILABLE # 830537880
4 SEAL SEAL FOR PUMP HEAD VP78 # 96672001
5 RETAINER CLIP FOR PUMP HEAD VP78 # 25161
6 BALL BEARING 30MM ID X 62MM OD X 16MM TOP # 01300517
7 BEARING CLAMP FOR PUMP HEAD VP78 # 96671501
8 NOT AVAILABLE # 830537881
9 NOT AVAILABLE
10 NOT AVAILABLE # 830537880
11 NOT AVAILABLE # 96770202
12 CONNECTOR FOR PUMP HEAD VP76 - VP77 - VP78 # 95839301
13 CLUTCH FOR PUMP HEAD VP78 # 52115804
14 VANE OF COMPRESSOR VP78 ALFA LAVAL KIT OF 4 # 90638584
15 RUBBER CAP FOR PUMP HEAD VP78 # 96151701
16 NOT AVAILABLE

All parts must be ordered separately

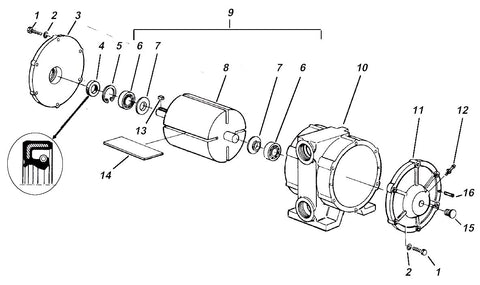

Exploded view (PDF) VP78 96106091
