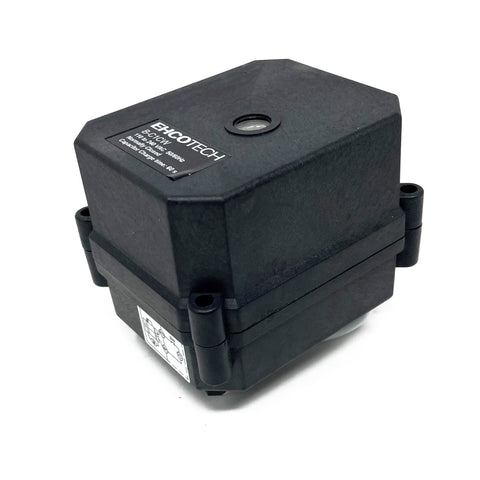

2 Wire Electric Ball Valve Coil
2-wire actuator Allows simple control and wiring Enable actuator to open valve Disable to close valve (closes with power supplied from internal capacitor takes approximately 60 seconds to charge capacitor)
Visual valve position indicator
About 4 seconds to open or close
Select size
9 to 24 vdc or vac (automatic detection)
Normally Closed N/C
1/2" TO 1" N/C 9 TO 24 VDC OR VAC # 01041256
1 1/2" TO 2" N/C 9 TO 24 VDC OR VAC # 01041351
Normally open N/O
1/2" TO 1" N/O 9 TO 24 VDC OR VAC # 01041346
1 1/2" TO 2" N/O 9 TO 24 VDC OR VAC # 01041352
OR 110 TO 240 VAC 50/60HZ (Auto detect)
Normally Closed N/C
1/2" TO 1" N/C 110 TO 240VAC # 01041273
1 1/2" TO 2" N/C 110 TO 240VAC # 01041324
Normally open N/O
1/2" TO 1" N/O 110 TO 240VAC # 01041347
1 1/2" TO 2" N/O 110 TO 240VAC # 01041353
